Vacuum Packaging Machine Automatic Vacuum Sealing Machine
Introduction of Vacuum Packaging Machine
1. Vacuum: The vacuum chamber closes, the vacuum pump works, the vacuum chamber starts to vacuum, the vacuum in the packaging bag is at the same time, the vacuum meter pointer rises, and the vacuum pump reaches the rated vacuum (controlled by the time relay ISJ) stops working and the vacuum stops. While working in vacuum, the two-position three-way solenoid valve IDT works, the hot sealing chamber is vacuum, and the hot pressing frame is in situ.
2. Heat seal: IDT breaks, the outside atmosphere enters the heat seal chamber through its upper air intake hole, uses the pressure difference between the vacuum chamber and the heat seal chamber to inflate and expand the heat seal chamber, so that the upper hot press rack moves down and the bag mouth is pressed down; at the same time, the heat seal transformer works and begins to seal; at the same time, the time, time, the time relay 2SJ works, and after several seconds, the heat seal ends.
Features of Vacuum Packaging Machine
Automatic Processing Of Vacuuming, Sealing, Printing, Cooling
Widely Used In Vacuum Packaging For Food, Pharmaceutical, Aquatic, Chemical And Electronic Industries. It Can Prevent The Products From Oxidization And Mildew, As Well As Corrosion And Moisture, Keeping The Quality And Freshness And Prolonging The Storage Time.
It Provides a Perfect Solution For The Food Safety And Kitchen Cooking, Offers a Convenient Service.
Operations, steps
1.After checking before starting, turn on the power.
2.Set the exhaust time, heat seal time meter heat seal temperature gear (low, medium, high)
3.Put the packed articles into the vacuum chamber, lift the pressure rod membrane and press it on the bag mouth.
4.Press down the vacuum cap. The packing procedure starts with air exhaustion and then goes to heat sealing until the vacuum cap pops up automatically. The packing process ends.
Specifications of Vacuum Packaging Machine
Product of Vacuum Packaging Machine
Factory of Vacuum Packaging Machine
Introduction of Vacuum Packaging Machine
1. Vacuum: The vacuum chamber closes, the vacuum pump works, the vacuum chamber starts to vacuum, the vacuum in the packaging bag is at the same time, the vacuum meter pointer rises, and the vacuum pump reaches the rated vacuum (controlled by the time relay ISJ) stops working and the vacuum stops. While working in vacuum, the two-position three-way solenoid valve IDT works, the hot sealing chamber is vacuum, and the hot pressing frame is in situ.
2. Heat seal: IDT breaks, the outside atmosphere enters the heat seal chamber through its upper air intake hole, uses the pressure difference between the vacuum chamber and the heat seal chamber to inflate and expand the heat seal chamber, so that the upper hot press rack moves down and the bag mouth is pressed down; at the same time, the heat seal transformer works and begins to seal; at the same time, the time, time, the time relay 2SJ works, and after several seconds, the heat seal ends.
Features of Vacuum Packaging Machine
Automatic Processing Of Vacuuming, Sealing, Printing, Cooling
Widely Used In Vacuum Packaging For Food, Pharmaceutical, Aquatic, Chemical And Electronic Industries. It Can Prevent The Products From Oxidization And Mildew, As Well As Corrosion And Moisture, Keeping The Quality And Freshness And Prolonging The Storage Time.
It Provides a Perfect Solution For The Food Safety And Kitchen Cooking, Offers a Convenient Service.
Operations, steps
1.After checking before starting, turn on the power.
2.Set the exhaust time, heat seal time meter heat seal temperature gear (low, medium, high)
3.Put the packed articles into the vacuum chamber, lift the pressure rod membrane and press it on the bag mouth.
4.Press down the vacuum cap. The packing procedure starts with air exhaustion and then goes to heat sealing until the vacuum cap pops up automatically. The packing process ends.
Specifications of Vacuum Packaging Machine
| MODEL | MCZB400 | MCZB500 | MCZB600 |
| Seal bar length | 400mm | 500mm | 600mm |
| Chamber size(LWH) | 400*380*110mm | 500*480*110mm | 600*480*110mm |
| Work cycle(minute) | 2-4 cycle | ||
| Vacuum pump | XD-020 | XD-(020)040 | XD-040(063) |
| Voltage(optional) | AC110V/220V/240V/380V/480V 50HZ/60HZ | ||
| Power | ~1.5KW | ~2.0KW | ~2.5KW |
| Material | SUS304 food grade stainless steel | ||
| Weight | 120KG | 150KG | 200KG |
| Dimension | 950*620*900MM | 1200*700*930MM | 1450*740*960MM |

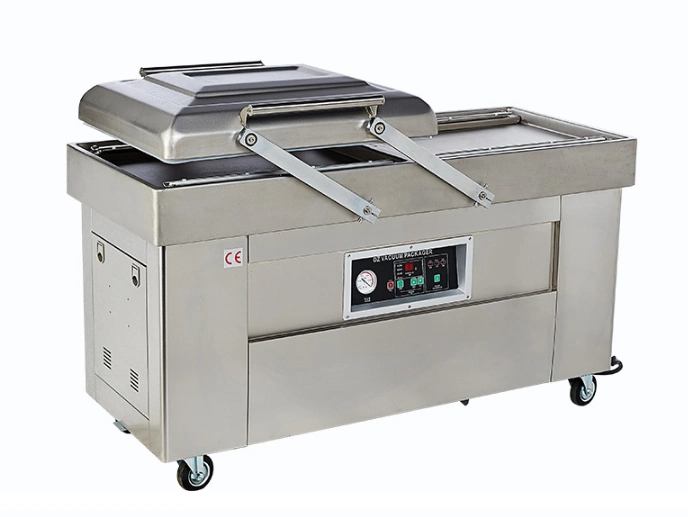

Product of Vacuum Packaging Machine
Factory of Vacuum Packaging Machine
